The most dependable and versatile water jetting and steam cleaning tool

Typhoon 325 Specs

Our team at Horizon created a groundbreaking technology with the Typhoon 325 through the application of Power, Pressure, and Heat. Our equipment is designed to deliver the performance necessary for industrial cleaning environments. Horizon’s proprietary technology offers operators an unparalleled EIGHT Operating Modes in ONE unit.

Typhoon 325: 8-in-1 in User Flexibility

Typhoon 325:
8-in-1 in User Flexibility

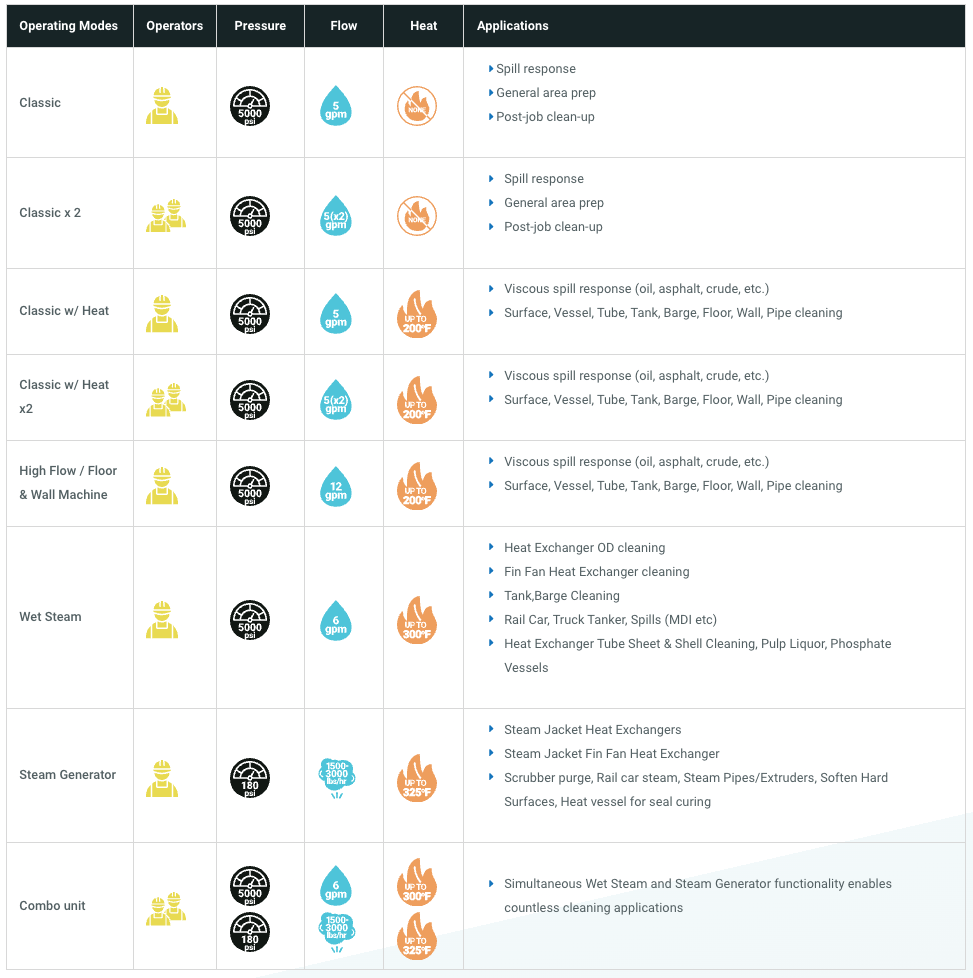

Operating Modes	Operators	Pressure	Flow	Heat	Applications
Classic					Spill response General area prep Post-job clean-up
Classic x 2					Spill response General area prep Post-job clean-up
Classic w/ Heat					Viscous spill response (oil, asphalt, crude, etc.) Surface, Vessel, Tube, Tank, Barge, Floor, Wall, Pipe cleaning
Classic w/ Heat x2					Viscous spill response (oil, asphalt, crude, etc.) Surface, Vessel, Tube, Tank, Barge, Floor, Wall, Pipe cleaning
High Flow / Floor & Wall Machine					Viscous spill response (oil, asphalt, crude, etc.) Surface, Vessel, Tube, Tank, Barge, Floor, Wall, Pipe cleaning
Wet Steam					Heat Exchanger OD cleaning Fin Fan Heat Exchanger cleaning Tank,Barge Cleaning Rail Car, Truck Tanker, Spills (MDI etc) Heat Exchanger Tube Sheet & Shell Cleaning, Pulp Liquor, Phosphate Vessels
Steam Generator					Steam Jacket Heat Exchangers Steam Jacket Fin Fan Heat Exchanger Scrubber purge, Rail car steam, Steam Pipes/Extruders, Soften Hard Surfaces, Heat vessel for seal curing
Combo unit					Simultaneous Wet Steam and Steam Generator functionality enables countless cleaning applications

Case Study

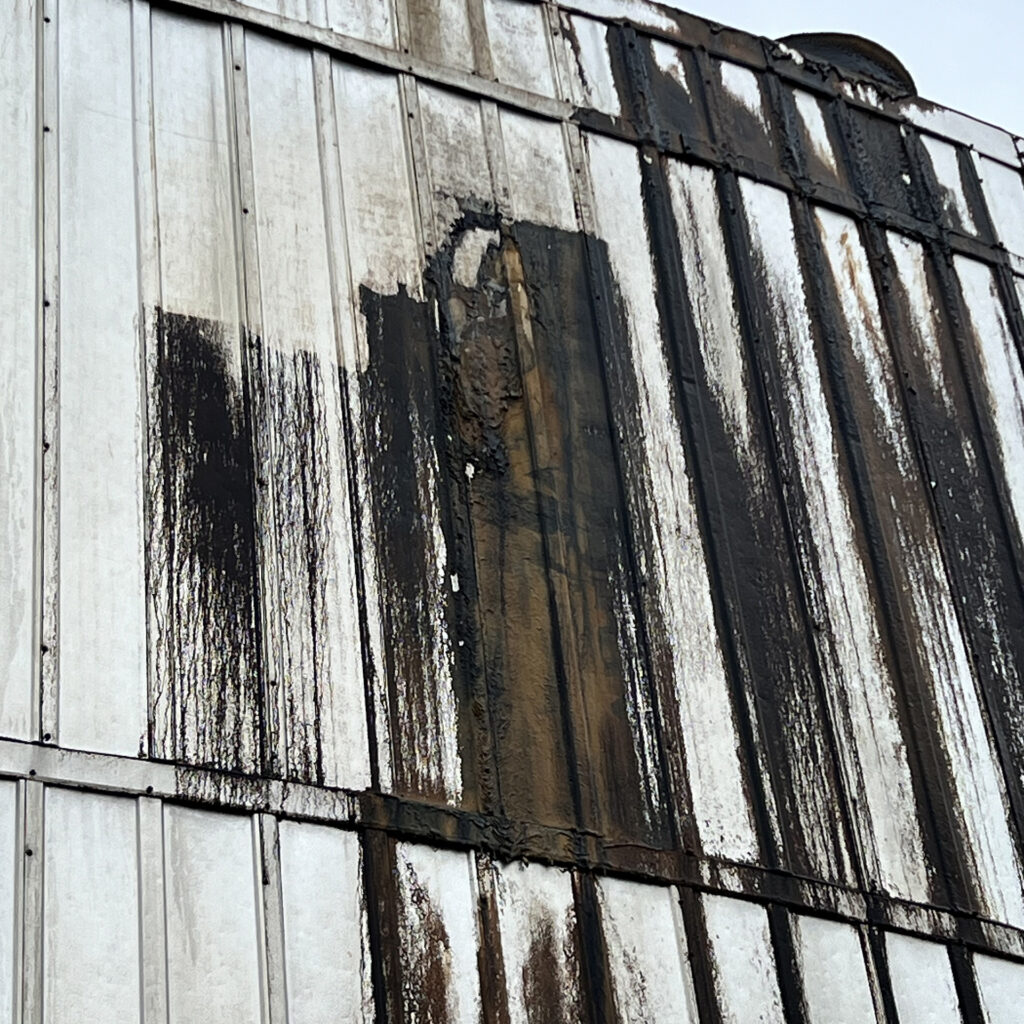

Major industrial cleaning contractor tasked with a tank cleaning project inside 100,000 barrel/day refinery located in the Southwestern United States

Comparison	Horizon Typhoon 325	Market-Recognized 20K Waterblaster
Pressure:	5,000 psi	20,000 psi
Flow:	5 gpm	22gpm
Temperature:	185°F – 285°F	60°F (ambient)
Gallons of Fuel/Hour:	4.6 GPH	20.9 GPH

Results Evaluation
Time to Complete Project	3 hours	8 hours
Total Water Consumed	900 gallons	10,560 gallons
Total Cost of Fuel	$48.00	$585.00

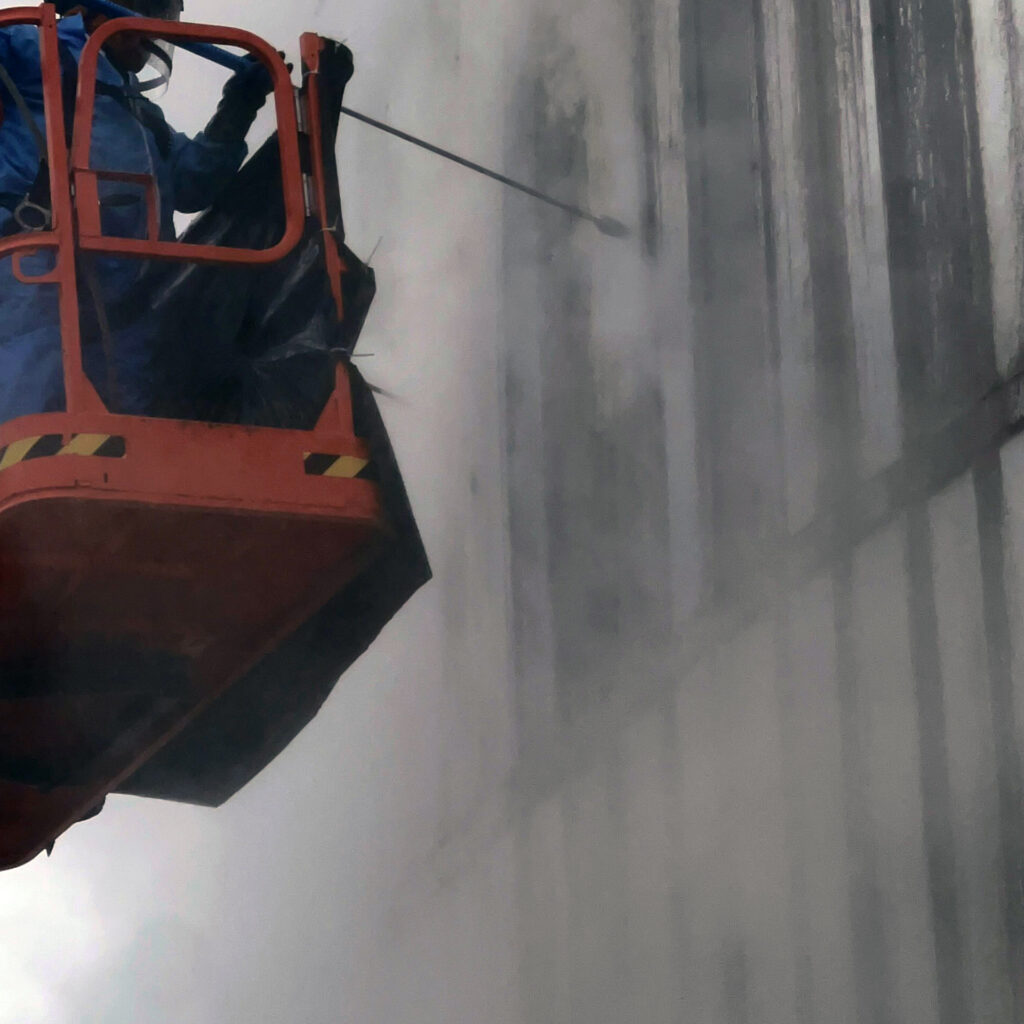

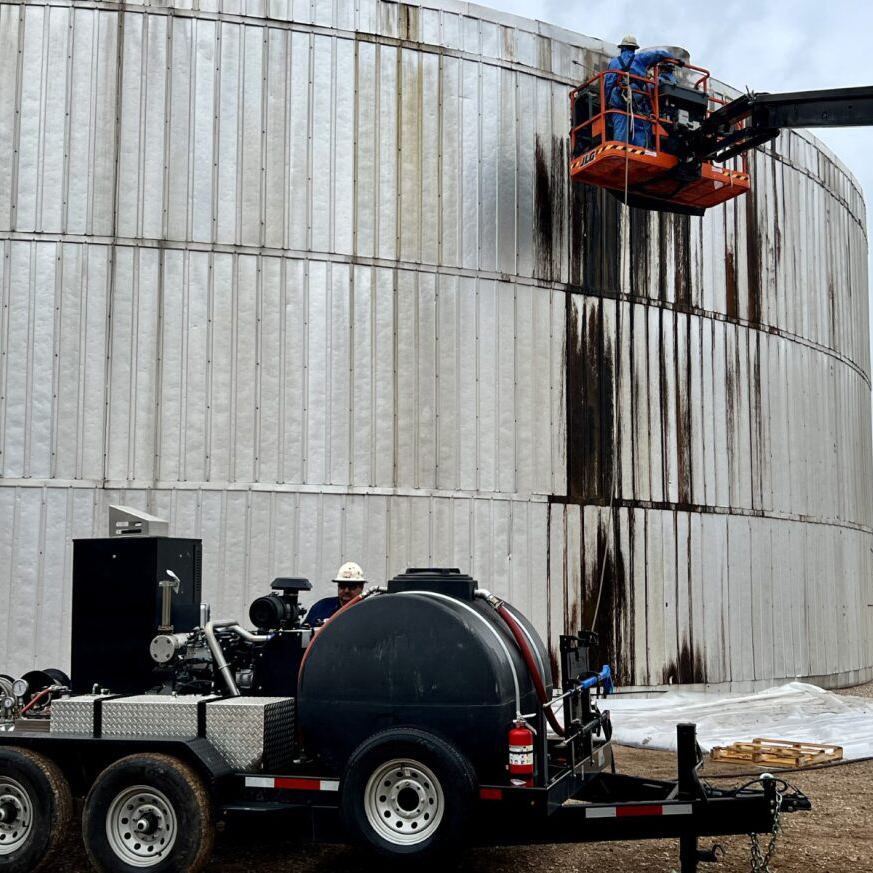

Case Study In Progress 2 — Tank In Progress

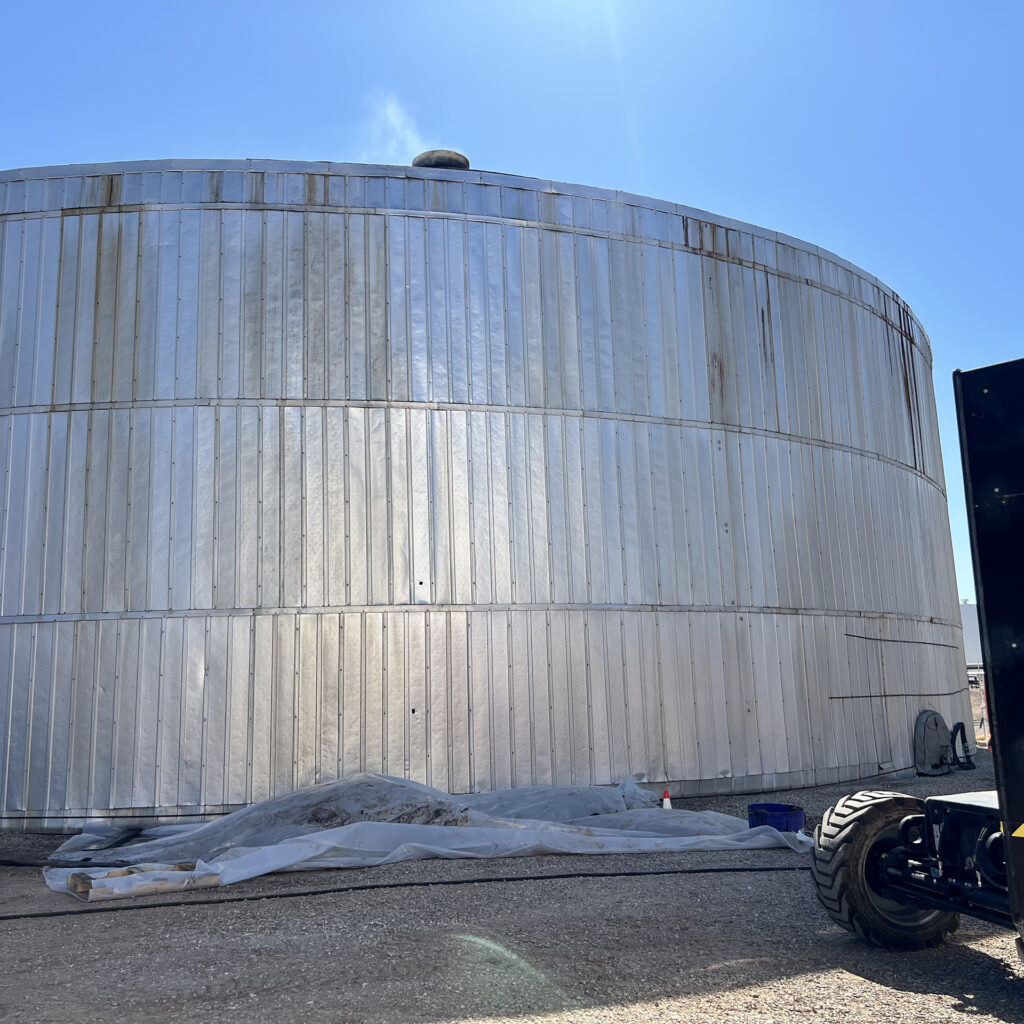

The industrial cleaning contractor, who has cleaned this tank numerous times, was able to clean the vessel more quickly and effectively than ever before.

The Refinery Manager was so impressed with the Horizon Typhoon 325, the project scope and mandate for Horizon’s customer was expanded. As a result, Horizon’s Typhoon 325 has been operating daily inside the plant on a nested basis.

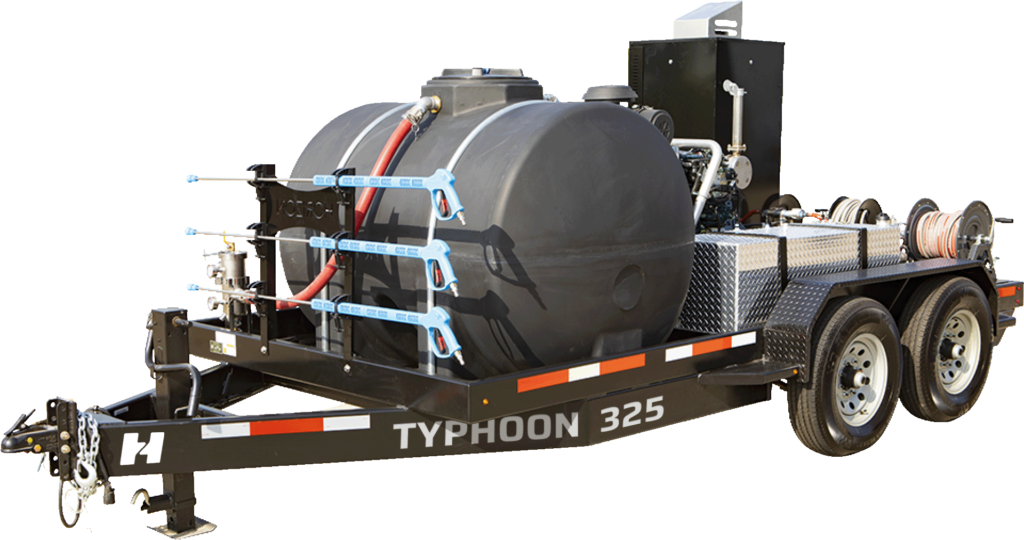

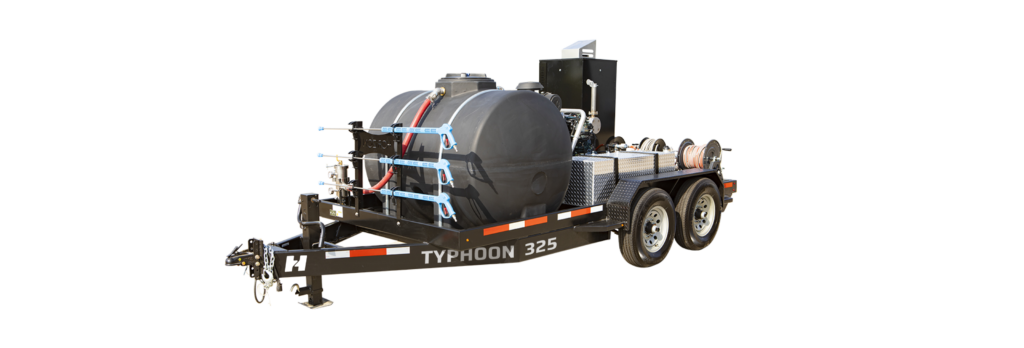

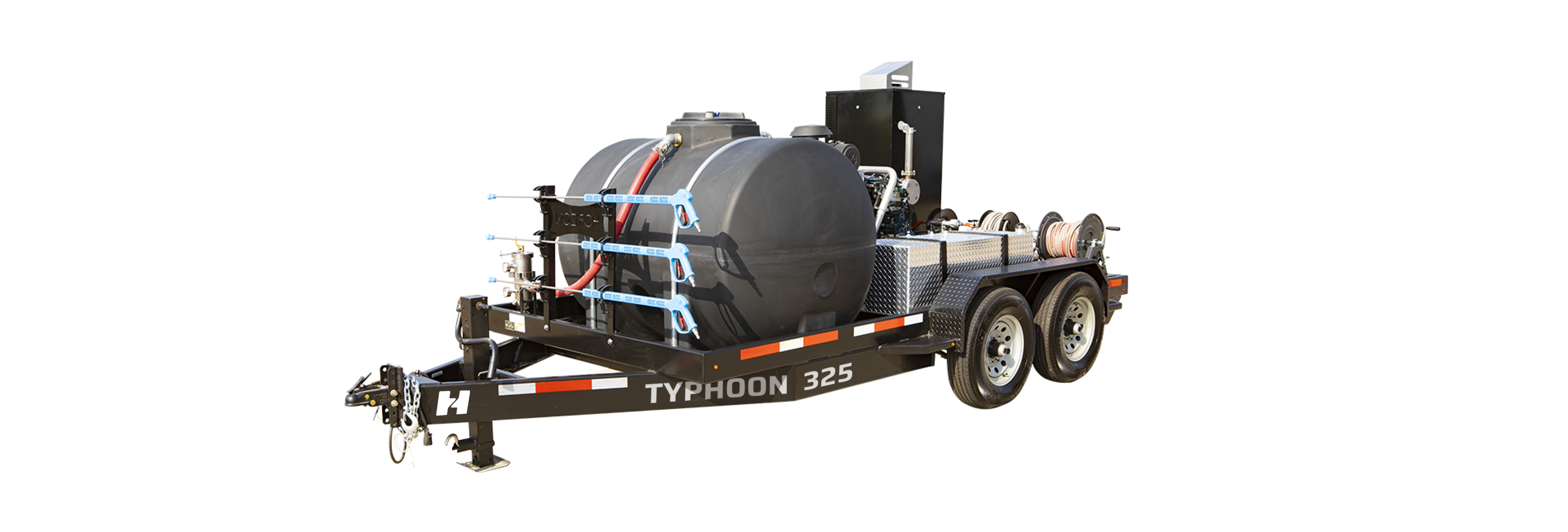

Typhoon 325 + Accessories

Experience ultimate user flexibility with our pressure water jetting unit operating in seven settings. From no heat to hot water, wet steam flow, and wet steam generation, we provide the power you need.

Accessories

We have numerous cleaning accessories including high-quality hoses, precision-engineered cleaning lances, versatile nozzles, and reliable adapters to enhance and optimize your cleaning operation. Please give us a call to discuss your application needs.

Power.
Pressure.
Heat.

Cleaning solutions
across diverse
sectors

Automotive

Aviation

Food & Beverage

Marine

Oil & Gas

Pulp & Paper

Rail
